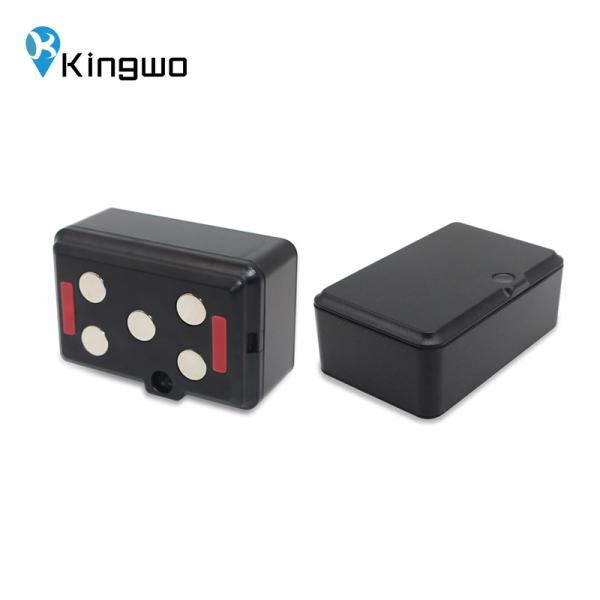

    Vehicle Gas Cylinder Global GPRS GSM GPS Locator Tracker Super Long Endurance IP65

    Ask Lasest Price
    Brand Name : Kingwo
    Model Number : MT07C- 7
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal
    Supply Ability : 30000 Pieces per Month
    Delivery Time : 1-15 days based on quantity
    • Product Details
    • Company Profile

    Vehicle Gas Cylinder Global GPRS GSM GPS Locator Tracker Super Long Endurance IP65

    Super Long Endurance GSM GPS Locator Car Tracking Device Vehicle Gas Cylinder Tracker


    Description


    MT07 is a 2G asset GPS tracker with 2700Mah battery, compact size, and built-in GPS/GSM antenna, low cost, low data consumption. It’s ideally suitable for Asset tracking market.

    4.1.5 Intelligent Tracking Function

    When found the vehicle is stolen or in other emergency cases and the real time location of the vehicle needs to be checked, a SMS can be sent or send a command from the backend, when the terminal starts work next time, it will receive this command and enter into track mode, and upload the location data according to the preconfigured interval by customer until a stop tracking command is received

    4.1.6 Blind Zone Compensation

    When the terminal enter into blind zone when in sleep mode,it will store the trace data according to the preconfigured time interval and it will upload the data in the blind zone to the backend


    Remark: MT07/MT07C upload 16-32 pack blind zone compensation data, MT07W/MT07CW uploads 8-16 pack blind zone compensation data.

    4.1.7 Clock Mode

    The terminal could verify the timely wake up time points, maximum 4 points can be set for more accurate position and connection to the server, this function could use SMS command or backend command to set

    4.1.8 Backend Specific Commands

    Since the working time of the terminal is short, it is rare to receive the SMS, to ensure the command sending efficiently, the backend uses a specific commands for MT06CW which can preset the command, when the terminal is online, the backend will automatic send this command, to make sure the commands is properly received.


    Specification


    PhysicalDimension64.5mm*41.5mm*25.5mm(L*W*H)
    Weight78±5g
    CellularCommunication moduleQuectel MC25
    Frequency

    Working frequency:

    GPRS: 850/900/1800/1900MHz

    Sensitivity: -107dBm@850/900MHz

    -106dBm@1800/1900MHz

    Output power: Class 4 (2W)@850/900MHz

    Class 1 (1W)@1800/1900MHz

    GPRS data: GPRS Class 10, Mobile Station Class B

    GPS

    Channels: 50

    Sensitivity: -147dBm

    Position accuracy:5-10m

    Accuracy: 5m CEP

    Cold start: <27s

    Hot start: <1s

    PowerBattery

    Disposable Lithium-ion battery and (3.6V,2700mAh)

    and ultra-low discharge rate:less than 1%, store one year below 25℃

    Power consumptionAverage working current <100mA; Power save current <15uA;
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicrosim
    Indicator2 status LEDs, Green: GPS, Red: GPRS
    Environmental ParameterWorking Temperature-20℃~ +70℃
    Humidity5%~95% (no fog)
    Ingress Protection RatingIP65

    Vehicle Gas Cylinder Global GPRS GSM GPS Locator Tracker Super Long Endurance IP65Vehicle Gas Cylinder Global GPRS GSM GPS Locator Tracker Super Long Endurance IP65


    FAQ


    Q: Reply Time:

    A: All inquiries will be answered within 24 hours.

    Q: Payment Terms:
    A: We accept payment by Visa Card, Master card, Alipay, Qiwi Wallet, Western Union and Bank Transfer T/T.

    Q:Shipment Terms:

    A: All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will

    send an email to you include the track number and the package photos.

    Q:Customize and Sample:

    A:OEM & ODM services are accepted if you place an order with enough quantity, and sample first is highly welcome.

    Q: MOQ Limitation:

    A: No MOQ limit, 1 pc for sample checking is available.
