    Asset Fleet GPS Trackers IP67 Real Time Gps Tracker With Magnet Mount

    Ask Lasest Price
    Brand Name : kingwo
    Model Number : LT06C-E
    Price : USD negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Asset Fleet GPS Trackers IP67 Real Time Gps Tracker With Magnet Mount

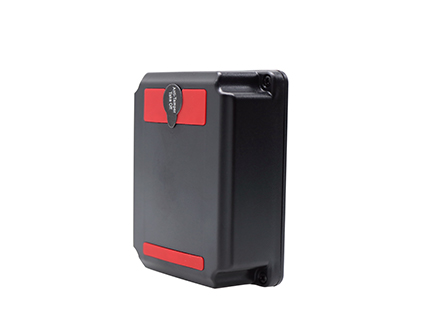

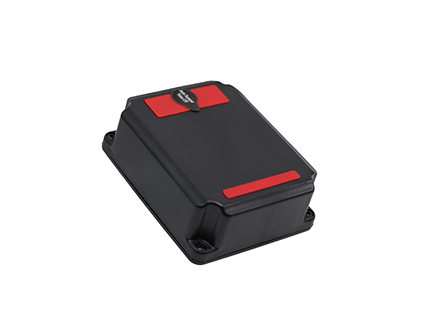

    LT06C-E Asset GPS Tracker built-in GPS/GSM antenna tracker

    LT06C is a compact GPS tracker for vehicles, it is small in size and with internal GPS/GSM antenna. It is designed for cars, vehicles, fixed assets and valuables. It built-in non-rechargeable lithium-ion batteries, can be used more than 5 years.


    1. No wired needed, easy for installation

    2. Built in G-sensor

    3. Built-in large-capacity disposable lithium-ion battery, with ultra-low
    self-discharge rate and extremely wide temperature adaptability.

    4. Battery can be last for 3 years based on reports one GPS position every day

    5. Ultra-low consumption, less than 15uA below when in sleep mode

    6. Terminal is with smallest size and easy for concealable installation


    PhysicalDimension81mm*51mm*31mm(L*W*H)
    Weight161±5g
    CellularModuleQuectel EC25
    Frequency

    Working frequency:

    Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

    • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85E
    • WCDMA:B1/B2/B4/B5/B8
    • GSM/GPRS: 850/900/1800/1900MHz

    protocol: Embedded TCP/IP stack

    Sensitivity: -107dBm@850/900MHz

    -106dBm@1800/1900MHz

    Output power: Class 4 (2W)@850/900MHz

    Class 1 (1W)@1800/1900MHz

    GPRS data: GPRS Class 10, Mobile Station Class B

    GPS

    Channels: 50

    Sensitivity: -147dBm

    Position accuracy:5-10m

    Accuracy: 5m CEP

    Cold start: <27s

    Hot start: <1s

    ProcessorST
    Motion sensorDA260
    Wifi positionWifi 4.0
    PowerBattery

    Disposable Lithium-ion battery and (3.6V,8100mAh)

    and ultra-low discharge rate:less than 1%, store one year below 25℃

    Power consumptionAverage working current <100mA; Power save current <10uA;
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicroSIM
    Indicator2 status LEDs, Green: GPS, Red: Celluar
    Environmental ParameterWorking Temperature-20℃ ~ +70℃
    Humidity5% ~ 95% (no fog)
    Ingress Protection RatingIP65(optional IP67)
    Asset Fleet GPS Trackers IP67 Real Time Gps Tracker With Magnet MountAsset Fleet GPS Trackers IP67 Real Time Gps Tracker With Magnet Mount
