Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery

    Buy cheap Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery from wholesalers

    Buy cheap Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery from wholesalers
    • Buy cheap Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery from wholesalers
    • Buy cheap Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery from wholesalers
    • Buy cheap Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery from wholesalers

    Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery

    Ask Lasest Price
    Brand Name : Kingwo
    Model Number : NT08EC
    Certification : FCC CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000 pcs per month
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Magnetic Lte-M 4G Ble Car Camper Trailer GPS Tracker Ultra Long Standby Battery

    4G Lte - M Ultra Long Standby Harsh Enviroment Withstand Ble Trailer GPS Tracker

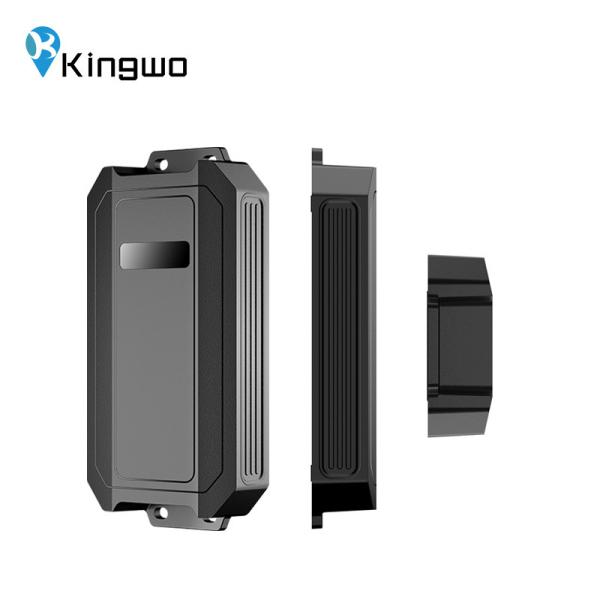

    NT08EC is 4G Lte - M Robust Design Ultra Long Standby Harsh Enviroment Withstand Trailer GPS Tracker, this device is with industrial design and powerful battery and GPS with superior performance, it is especially designed for trailers, heavy machines, RV's .

    Features:

    1. Super long battery life

    2. Global CatM1 Technology with 2G fall back.

    3. Compliant IP67 waterproof

    4. Up to 10 years working time

    5. Jamming detection

    6. Fast and flexible installation

    7. Magnetic mount

    8. 10 years work life


    Specifications:


    PhysicalDimension154X82X30mm(L*W*H)
    Weight495±7g
    CellularCommunication moduleQuectel BG95 M3
    Frequency

    Working frequency:

    Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

    • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

    • EGPRS: 850/900/1800/1900MHz

    protocol: Embedded TCP/IP stack

    Sensitivity: -107dBm@850/900MHz

    -106dBm@1800/1900MHz

    Output power: Class 4 (2W)@850/900MHz

    Class 1 (1W)@1800/1900MHz

    GPRS data: GPRS Class 10, Mobile Station Class B

    GPS

    Channels: 50

    Sensitivity: -147dBm

    Position accuracy:5-10m

    Accuracy: 5m CEP

    Cold start: <27s

    Hot start: <1s

    ProcessorSTM
    Motion sensorDA260
    Wifi positionWifi 4.0
    BluetoothBluetooth 5.0
    PowerBattery

    Disposable Lithium-ion battery and (3.6V,20000mAh)

    and ultra-low discharge rate:less than 1%, store one year below 25℃

    Power consumptionAverage working current <100mA; Power save current 107uA;
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicrosim
    Indicator2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure)
    Environmental ParameterWorking Temperature-20℃ ~ +70℃
    Humidity5% ~ 95% (no fog)
    Ingress Protection RatingIP67

    More features:

    • Motion alarm

    The motion is in static mode and the motion alarm is turned on, and the motion alarm will be reported following the positioning after being awakened by motion.

    G-sensor failure alarm

    If Gsensor I2C initialization failed, it will report motion sensor failure with position packets


    Wifi failure feature

    After powering on the WIFI twice in a row, the serial port did not report any information, and followed the positioning packets it will report a WIFI failure alarm.

    iBeacon

    The device is equipped with Bluetooth chip, and it broadcasts ibeacon BLE information regularly after power on, and the distance can be checked through the Apple beacon APP.



    FAQ

    Q1. Can you help for design?

    A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.


    Q2: Are you manufacturer?
    A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
    Q3: What's your payment terms?
    A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
    Q4: What is your delivery time?
    A: Immediate shipment for sample order and 3-15days for bulk order.
    Q5: Do your have your own platform?
    A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
    Q6: How do you make our business long-term and good relationship?
    A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every customer
