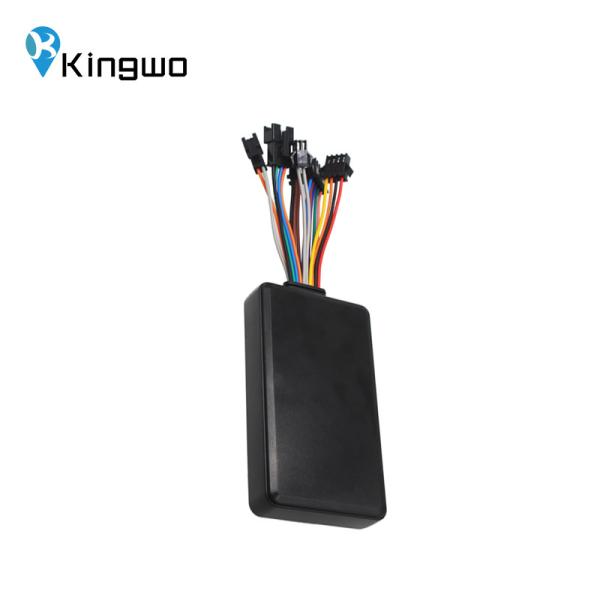

2g GSM multiple functions Car Motorcycle GPS Tracking Device
support relay sos connector
MT13 is a multifunctional device with high performance,this is a 2g
GSM multiple functions Car Motorcycle GPS Tracking Device support
relay sos connectors.
Features of MT13 GPS Tracker:
1. GPS+LBS Dual Positioning Ways
2. Realtime Tracking
3. History Route Playback
4. Standby Time
5. Overspeed Alarm
6. Shock/Vibration Alarm
7. Geo-fence
8. Remote Control
9. GSM band: 850/900/1800/1900 MHz
The device can't be used in the following countries:
USA, Australia, New Zealand, Korea, Japan, Canada, Singapore, China
Taiwan
Parameters:
Device Dimension : 98*56*18mm
Device Weight :85g
Network : GSM&GPRS
Frequency Band : GSM 850/900/1800/1900MHz
Location Way : LBS/AGPS/GPS/Beidou
Location accuracy : <10 meters
Internal Battery : 850mAh
Standby Time : 8hours
Specification
| Mechanical | Size | 98mm (L) x 56mm (W) x 18mm (H) |
| Weight | 80±5g |
| Interface | RS232 interface |
| Data transmission | Packet data GPRS and SMS |
| Positioning method | GPS,LBS,AGPS,Beidou |
| Storage | 20000 GPS data storage |
| Power | Voltage | 9-36VDC |
| GPS | Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
| Cellular | Module: QUECTEL MC25 GSM/GPRS 850/900/1800/1900 MHz |
| Chipset | STM32F070CB |
| Standby time | 850mAh for 8hours |
| LED Indication | GPS/Cellular |
| Antenna | Cellular | Internal |
| GPS | Internal |
| Accessories | Relay,SOS,Speaker,Mic(Optional) |
FAQ:
Q: Can you send samples free of charge?
A: You are required to pay for the sample and transportation.
Q: What is the final price?
A: The final price depends on the quantity of your order. Because
shipping fee is depended on total weight of your order.
Q: What are your payment methods?
A: Alibaba Payment, Banktransfer,Western Union,Paypal etc.
Q: When do you deliver the goods?
A: The sample takes 1-3 days; the bulk order is about 15-45 days
according to the quantity. It takes about 3-5 days to delivery
after order sent. Order carried by DHL or UPS.
Q: What mode of transportation can you offer?
A: According to the customer's request, shipping / air
transportation is OK.
Q: How long is your guarantee?
A: 12months warranty. We could assign engineer to help look into
defective device. New replacement will be sent once engineer
confirm the device can't be fixed.
