    Mini Waterproof GPS Asset Tracker Temperature Monitor Wifi Postion Kingwo

    Ask Lasest Price
    Brand Name : Kingwo
    Model Number : NT06E
    Certification : FCC CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000 pcs per month
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Mini Waterproof GPS Asset Tracker Temperature Monitor Wifi Postion Kingwo

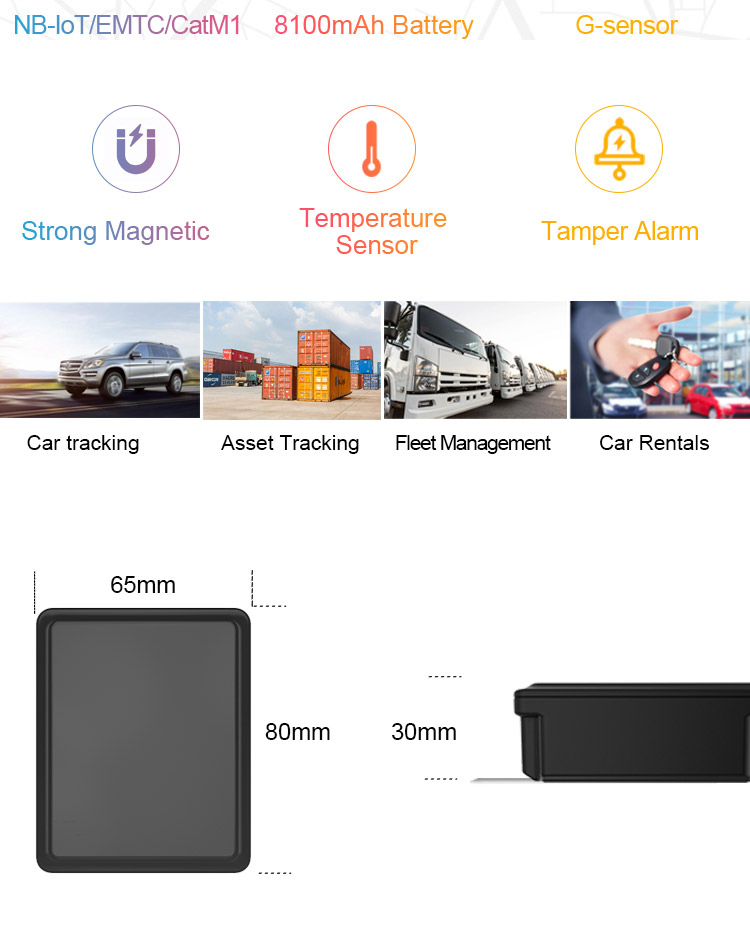

    NT06E is a Long Standby Temperature Monitor Wifi Postion GPS Asset Tracker with 8100Mah battery, it has built in temperature sensor, G-sensor wifi chip ,GPS and celluar chip, it can be used in many areas including trucks, trailers, RV's , tools etc.

    Features:

    1. Magnets for easy installation

    2. Battery can last for 5 years

    3. Built in light sensor for removal alarm

    4. Bulit in G-sensor for motion alarm and collision alarm

    5. Ultra low consumption

    6. Temperature monitor

    7. IP67 waterproof

    8. GPS, LBS and Wifi Position


    Specifications:


    PhysicalDimension81mm*51mm*31mm(L*W*H)
    Weight192±7g
    CellularCommunication moduleQuectel BG96
    Frequency

    Working frequency:

    Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85
    • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85
    • EGPRS: 850/900/1800/1900MH

    GPS

    Channels: 50

    Sensitivity: -147dBm

    Position accuracy:5-10m

    Accuracy: 5m CEP

    Cold start: <27s

    Hot start: <1s

    PowerBattery

    Disposable Lithium-ion battery and (3.6V,8100mAh)

    and ultra-low discharge rate:less than 1%, store one year below 25℃

    Power consumptionAverage working current <100mA; Power save current <10uA;
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicrosim
    Indicator2 status LEDs, Green: GPS, Red:Celluar
    Environmental ParameterWorking Temperature-20℃ ~ +70℃
    Humidity5% ~ 95% (no fog)
    Ingress Protection RatingIP67

    More features:

    • History data store

    When the device enter into blind zone when in sleep mode, it will store the trace data according to the preconfigured time interval and it will upload the data in the blind zone to the backend when the cellular network recovers

    LBS

    The default position mode is by GPS, however when device enters into the blind zone and GPS cannot be fixed, the device will switch to LBS position, LBS provides the reference wlocation hich is might not accurate

    OTA commands from backend

    Since the wake up of the device is short, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.

    Tracking

    The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software



    IP67 Waterproof wireless NB IoT new technology LTE-M gps tracker NT06E



    FAQ

    Q1. Can you help for design?

    A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.


    Q2: Are you manufacturer?
    A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
    Q3: What's your payment terms?
    A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
    Q4: What is your delivery time?
    A: Immediate shipment for sample order and 3-15days for bulk order.
    Q5: Do your have your own platform?
    A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
    Q6: How do you make our business long-term and good relationship?
    A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every
