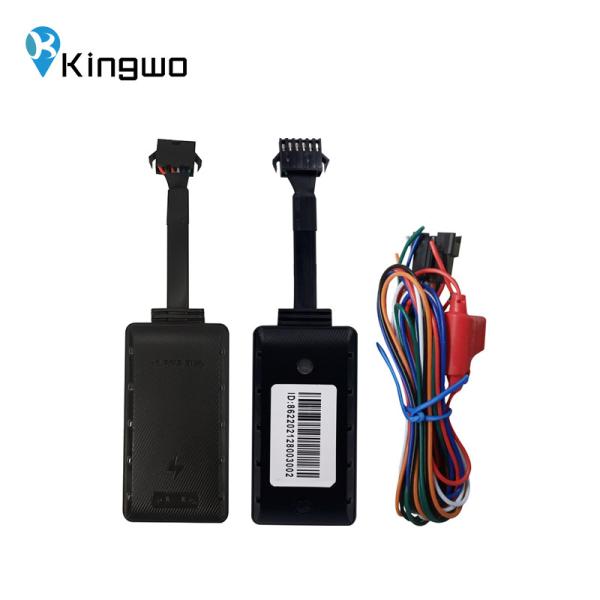

internal battery back up 2g gsm wiring vehicle gps tracker for motor car ebikes

MT200 is real time motorcycle gps tracker 2g multiple hidden gps tracker for motorcycle,cars,ebikes and escooters.This one is a hardwired tracker with BLE for tracking powered assets and vehicles, with ignition detection and output for relay/buzzer/siren.

Tracking function

Data upload according to time, speed and distance (Default setting is upload by time)

The device can be set to upload data packets to the backend at a certain time interval.

The device can be configured to send data packets at a certain distance

The device can be also configured to send data packets when it detects a certain speed change.

History data storage

When the vehicles enters the GPRS blind area, the device will store the GPS data upon 15s interval as default value, those data will be uploaded to the backend server once GPRS network recovered, maximum 1000 pcs of data can be stored, the interval can be configured from 5-7200 seconds

Cornering Compensation

If the device detects that the vehicle driving direction has certain angular deviation (default 15 degrees), the device will upload a packet extra to make sure the driving trace is more accurate.

Bluetooth function

The device is with built in Bluetooth function for configuration and sensors connecting for example Bluetooth fuel sensor

AGPS

The device supports AGPS, once the device is connected to GPRS, the AGPS can be used to speed up the positioning and improve accuracy,

Important notice: if your SIM card has IP access limitation, you may whitelist below IP for AGPS connection: 119.23.233.52

Specifications:

Wiring diagram
