car gps tracker vehicle devices 2g wiring wide voltage real time
tracking

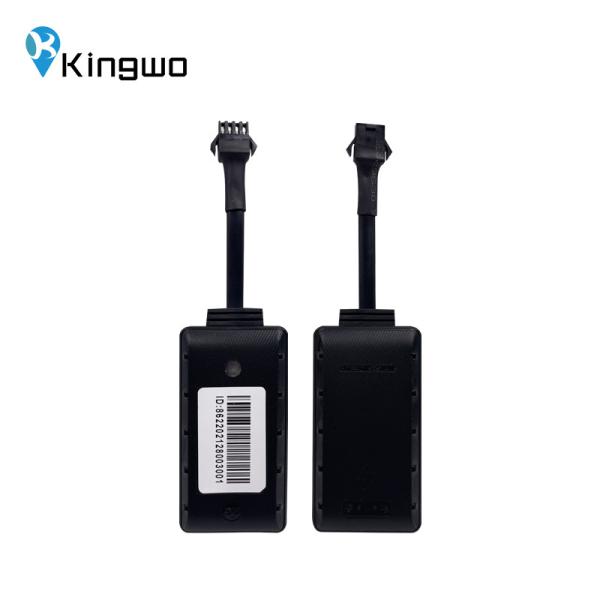

MT200 is real time motorcycle gps tracker 2g multiple hidden gps
tracker for motorcycle,cars,ebikes and escooters.This one is a
hardwired tracker with BLE for tracking powered assets and
vehicles, with ignition detection and output for
relay/buzzer/siren.
Main Features:
● Support GPS, AGPS and LBS, super-fast and accurate positioning
● Built in high sensitive G-sensor accelerometer
● Built in light sensor for removal alarm
● Driving behavior monitor (Speeding, hard declaration, hard
acceleration, cornering alarm)
● 9-100 Wide voltage
● Support dual IP and dual protocols
● Support Kingwo,GT800 protocol and JT808 protocol , and protocol
switch by SMS or Bluetooth setting
● Support upload interval by time, distance and speed
● Support OTA (Remote firmware upgrade feature)
Specifications:
| Physical | Dimension | 75*40*13mm |
| Weight | 45±3g |
| Cellular | GSM module | Quectel MC25 |
| Frequency | Working Frequency: 850/900/1800/1900MHz Network protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
| GPS | Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
| Bluetooth | Bluetooth 5.0 |
| Power | Input voltage | 9-100V |
| Battery | NI-MH AAA 3.6V/90mA,2hours working time based on 2-3 minutes upload |
| Power consumption | Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
| Interface | Digital input(2) | Ignition detect and Air condition status detect |
| Digital output(1) | Relay |
| Analog input 1 | Voltage range:0-36V |
| GSM antenna | Internal High Gain |
| GPS antenna | Internal High Gain |
| SIM | Microsim |
| Indicator | 2 status LEDs, Green: GPS, Red: GSM |
| Memory | 1000 packets |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) |
| Ingress Protection Rating | IP65 |
FAQ:
Q: Are you a manufacturer?
A: Yes, we work hard on the development and production of
high-precision tracking for more than 5 years. We have worked with
other manufacturers as well,so customers can do one stop buy from
us.
Q: Is sim card included for the gps tracker?
A: No, sim card not included,customers have to buy sim card from
local store.
Q: How do I track the location of the gps device?
A: You could track it by PC platform or application by IOS or
Android Phone. We offer lifetime free APP and platform for users.
