    Bluetooth GPS 20000mah Battery GPS Asset Tracker Powered High Gain GPS Antenna

    Ask Lasest Price
    Brand Name : Kingwo
    Model Number : NT08E
    Certification : FCC CE ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000 pcs per month
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Bluetooth GPS 20000mah Battery GPS Asset Tracker Powered High Gain GPS Antenna

    Kingwo GPS Asset Tracker Bluetooth GPS 20000mah Battery Poweredhigh Gain GPS Antenna

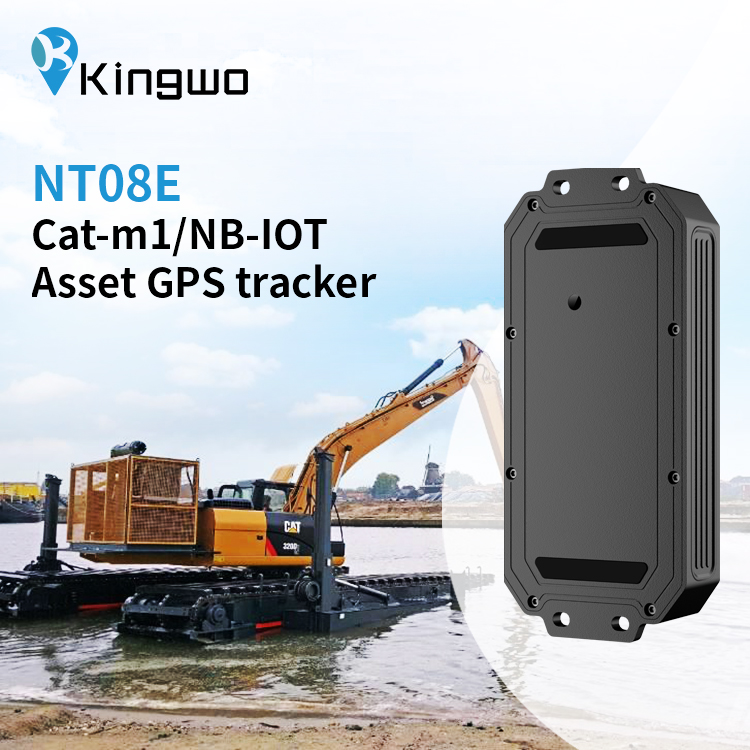

    NT08E is a 4G Lte-M Lithium Ion Battery Powered 10 Years Heavy Equipment Bluetooth GPS Assets Tracker, the device is with bluetooth for ibeacon features and 20000mah batteries which can work up to 10 years

    Features:

    1. Wifi MAC ID indoors tracking

    2. Bluetooth 5.0 for ibeacon

    3. Waterproof for outdoors tracking

    4. Intelligent work modes

    5. Clock mode, fixed upload, warehouse mode

    6. Temperature monitor

    7. Jamming detection

    8. 10 years work life


    Specifications:


    PhysicalDimension154X82X30mm(L*W*H)
    Weight495±5g
    CellularCommunication moduleQuectel BG95
    Frequency

    Working frequency:

    Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85

    • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85

    • EGPRS: 850/900/1800/1900MHz

    protocol: Embedded TCP/IP stack

    Sensitivity: -107dBm@850/900MHz

    -106dBm@1800/1900MHz

    Output power: Class 4 (2W)@850/900MHz

    Class 1 (1W)@1800/1900MHz

    GPRS data: GPRS Class 10, Mobile Station Class B

    GPS

    Channels: 50

    Sensitivity: -147dBm

    Position accuracy:5-10m

    Accuracy: 5m CEP

    Cold start: <27s

    Hot start: <1s

    ProcessorSTM32G070CB
    Motion sensorDA260
    Wifi positionWifi 4.0
    BluetoothBluetooth 5.0
    PowerBattery

    Disposable Lithium-ion battery and (3.6V,20000mAh)

    and ultra-low discharge rate:less than 1%, store one year below 25℃

    Power consumptionAverage working current <100mA; Power save current <15uA;
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicrosim
    Indicator2 status LEDs, Green: GPS, Red: Celluar(Inside enclosure)
    Environmental ParameterWorking Temperature-20℃ ~ +70℃
    Humidity5% ~ 95% (no fog)
    Ingress Protection RatingIP67

    More features:

    • Wifi Locate

    The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.

    ibeacon

    The device is equipped with Bluetooth chip, and it broadcasts ibeacon BLE information regularly after power on, and the distance can be checked through the Apple beacon APP;

    Wifi failure feature

    After powering on the WIFI twice in a row, the serial port did not report any information, and followed the positioning packets it will report a WIFI failure alarm;

    Collision alarm

    When the acceleration change value exceeds A, the device immediately wakes up and reports a collision alarm, please note collision alarm won’t work if the device is in motion and static mode as well as warehouse mode.

    China GPS WIFI BLE LBS position accelerometer Asset gps tracker NT08E

    Bluetooth GPS 20000mah Battery GPS Asset Tracker Powered High Gain GPS Antenna


    FAQ

    Q1. Can you help for design?

    A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.


    Q2: Are you manufacturer?
    A:Yes, we are manufacturer for GPS Tracker with more than 10 years experience
    Q3: What's your payment terms?
    A:We accept payment by Visa Card, Master card, Alipay, Wechat Wallet, Paypal and Bank Transfer T/T.
    Q4: What is your delivery time?
    A: Immediate shipment for sample order and 3-15days for bulk order.
    Q5: Do your have your own platform?
    A.Yes, we have our own platform and mobile app.It's named 365qczx.net and app named Track sense.
    Q6: How do you make our business long-term and good relationship?
    A:1.We keep good quality and competitive price to ensure our customers benefit; 2.We respect every customer
