    4G Compact Vehicle GPS Trackers Wired 5m Accuracy GPS Vehicle Locator Device

    Ask Lasest Price
    Brand Name : Kingwo
    Model Number : LT32
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000pcs/month
    Delivery Time : 10-20days
    • Product Details
    • Company Profile

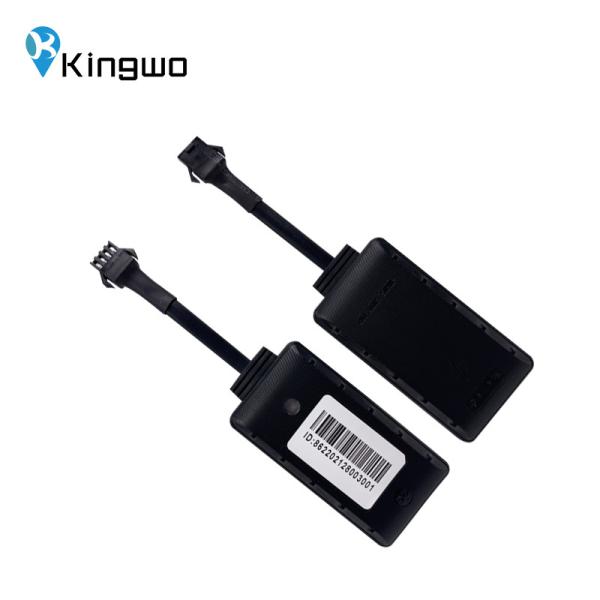

    4G Compact Vehicle GPS Trackers Wired 5m Accuracy GPS Vehicle Locator Device

    4G Vehicle GPS Trackers new launched wired car vehicle gps locator

    LT32

    This is a 4G compact GPS Tracker for vehicles, it is small in size and with internal antenna.It is designed for cars, vehicles, scooters and motorcycles, the device itself supports 9-90 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect and Bluetooth function as well.

    【Highlights】

    ● Support GPS, AGPS and LBS, super-fast and accurate positioning

    ● Supports GPS/LBS /AGPS positioning

    ● Support upload interval by time, distance and speed

    ● Built in high sensitive G-sensor accelerometer Real-time GPS tracking, History playback, Blind data storage, Cornering compensation

    ● Built in light sensor for removal alarm

    ● Driving behavior monitor (Speeding, harsh deceleration, harsh acceleration, cornering alarm)

    ● 9-100V Wide voltage

    ● Dual IP supported (Main server and backup server)

    ● IP block features

    ● Support Kingwo,GT800 protocol and JT808 protocol , and protocol switch by SMS or Bluetooth setting

    ● OTA for easier maintenance

    ● Bluetooth features for parameter setting and sensors connecting

    ● Light sensor

    ● 1000 data storage on each IP

    【Function】

    ● Real-time tracking monitoring, Real-time GPS tracking, History playback, Blind data storage, Cornering compensation

    ● Track according to time, distance and speed

    ● LBS and AGPS Positioning

    ● Driving behavior including hard declaration, acceleration, speeding, sharp turn, collision

    ● Low voltage and main power cut off alarm

    ● Towing alarm

    ● Flip over alarm

    ● Remote power and fuel cut off (Relay required)

    ● Mileage statistics

    ● Bluetooth configurations

    ● Removal alarm


    【Specification】


    PhysicalDimension75*40*13mm
    Weight45±3g
    Cellular &GPSModuleFibocom MC615
    GSM

    Working frequency:

    •LTE FDD: B1/B3/B5/B8

    •LTE TDD: B38/B39/B40/B41

    •Operating Temperature: -40℃~+85℃

    Operating Voltage: 3.3V~4.3V typical 3.8V

    GPS

    Receiver type

    -33 tracking /99 acquisition

    -channel Sensitivity

    -Tracking: -167 dBm

    -Reacquisition: -161 dBm

    -Cold starts : -149 dBm

    Time-To-First-Fix –

    -Cold starts: 28s (typ.)

    -Hot starts: <1s

    Warm starts: 22s

    Accuracy

    -Horizontal position : <2.5M CEP

    BluetoothBluetooth 5.0
    PowerInput voltage9-100V
    BatteryNI-MH AAA 3.6V/60mA,1.5hours working time based on 2-3 minutes upload
    Power consumption

    Average Current: <30mA (DC 12V)

    Maximum current: <10mA (DC 12V)

    【Diagram Construction】


    InterfaceDigital input 1Ignition detect
    Digital output 1Relay
    GSM antennaInternal High Gain
    GPS antennaInternal High Gain
    SIMMicrosim
    Indicator2 status LEDs, Green: GPS, Red: GSM
    Memory1000 pcs
    Environmental ParameterWorking Temperature-20℃ ~ +70℃
    Humidity5% ~ 95% (no fog)
    Ingress Protection RatingIP65
